Technological Parameters

Model	DJ-3A200
Metering Mode	Auger filling
Bag Size	W:60-200mm L:80-300mm Film thickness 0.05-0.08
Package Weight	10-500g
Package Accuracy	≤±0.5-1%
Packing Speed	25-40bags/min
Power Supply	380V/220V 50Hz/60Hz
Air Pressure	6-8kg/cm³
Total Power	3.5kW
Total Weight	500kg
Overall Dimensions	135012002500mm

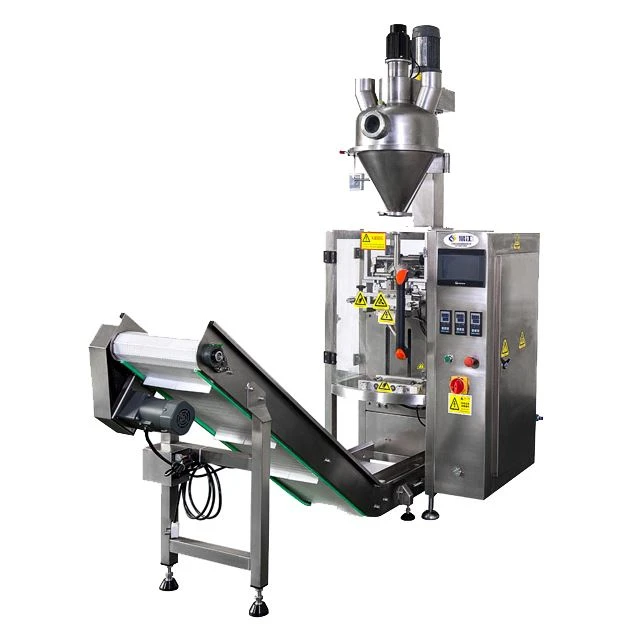

DJ-3A200 Automatic Powder Stick Packing Machine 2

DJ-3A200 Automatic Powder Stick Packing Machine 3

Feature

1. Comprehensive All-in-One Packaging Functionality

The DJ-3A200 operates as a fully integrated packaging solution, combining six critical processes-filling, weighing, bag forming, sealing, cutting, and coding-into a single unit. This consolidation eliminates the need for multiple separate machines, reducing factory floor space usage and simplifying production line coordination. By centralizing these steps, it also minimizes errors that can occur when transferring products between standalone equipment, ensuring a more seamless, uninterrupted packaging flow.

2. High-Precision Auger Filling for Consistent Results

Equipped with an auger filling system, the DJ-3A200 delivers exceptional accuracy, with a packaging tolerance of ≤±0.5-1%. This precision is particularly valuable for fine powders (such as milk powder, coffee powder, or spices), where even small weight deviations can lead to product waste or customer complaints. The auger system's controlled powder dispensing ensures every bag holds the exact target quantity, lowering material costs and boosting overall packaging efficiency by reducing rework.

3. Adjustable Packing Speed to Match Production Needs

With a packing speed range of 25–40 bags per minute, the DJ-3A200 adapts easily to both medium-volume batches and high-output continuous runs. What sets this speed control apart is its simplicity: adjustments can be made quickly via the machine's interface, no complex mechanical modifications required. This flexibility lets production teams respond promptly to changing order volumes, keeping the line efficient without sacrificing fill accuracy.

4. Servo Motor-Driven Stability for Reliable Dispensing

The machine's auger is powered by a servo motor, which ensures steady, consistent operation throughout each packaging cycle. Unlike standard motors that may experience slight speed fluctuations, the servo motor maintains precise control over the auger's movement-directly enhancing the accuracy of powder dispensing. This stability prevents uneven fills and reduces the risk of operational disruptions, making the DJ-3A200 a dependable choice for long production shifts.

5. Intuitive Touch Screen Interface for Easy Operation

The DJ-3A200 features a user-friendly touch screen that supports multiple languages, including Chinese, English, and customized options. This interface simplifies every aspect of machine use: operators can quickly set up parameters (like bag size or fill weight), monitor real-time production status, and troubleshoot minor issues-all without extensive training. By lowering the learning curve, the touch screen reduces human error and speeds up the time it takes to switch between product settings.

6. Easy Maintenance & Cleaning with 25L Side-Opening Hopper

A 25L side-opening hopper is a key design feature of the DJ-3A200, making routine cleaning and maintenance straightforward. The side-opening design allows operators to access the hopper's interior without disassembling large parts, ensuring thorough removal of residual powder (critical for switching between different products). Additionally, the hopper includes an integrated stirrer that keeps powder flowing smoothly, preventing clogs and inconsistent fills that could slow down production.

7. Versatile Bag Size Support for Diverse Packaging Needs

The machine accommodates a wide range of bag dimensions: widths from 50mm to 150mm and lengths from 80mm to 250mm. This versatility means it can handle everything from small single-serve sticks (e.g., 10g coffee sachets) to larger packs (e.g., 500g protein powder bags) without major overhauls. For businesses with varied product lines, this eliminates the need to invest in separate machines for different bag sizes.

8. Flexible Adaptation to Multiple Powder Types

Thanks to its adjustable components and modular design, the DJ-3A200 can be adapted to package a broad range of powder products-including fine powders and small granules-by simply swapping out accessories (e.g., auger attachments or filling nozzles). This flexibility is ideal for facilities that produce multiple items (e.g., spices, milk powder, and protein powder), as it allows quick product changes without lengthy downtime.

9. Enhanced Durability with High-Quality Electrical Components

The DJ-3A200 uses electrical components from well-known, reputable brands-ensuring consistent performance and a long service life. This robust construction reduces the frequency of breakdowns and unplanned downtime, which is essential for high-volume production environments where even short interruptions can impact output. Over time, this reliability also lowers maintenance costs by minimizing the need for frequent repairs or part replacements.

10. Dust-Free Operation for Hygiene & Machine Protection

A built-in vacuum cleaner system captures dust generated during the packaging process, addressing two key concerns: workplace hygiene and machine longevity. By removing airborne powder particles, the system creates a safer environment for operators (especially important for food or pharmaceutical applications) and prevents dust buildup on machine parts. This buildup can otherwise affect performance or cause contamination-making the vacuum system a critical feature for maintaining product quality and equipment efficiency.
